LNG Storage and Regasification station

GENERAL FEATURES

  • Production in accordance with 2014/68/EU Pressure Equipment Directive (PED), EN 13458, AD 2000 CODE, ASME (U STAMP), GOST
  • Earthquake resistance design in accordance with Euro code 3

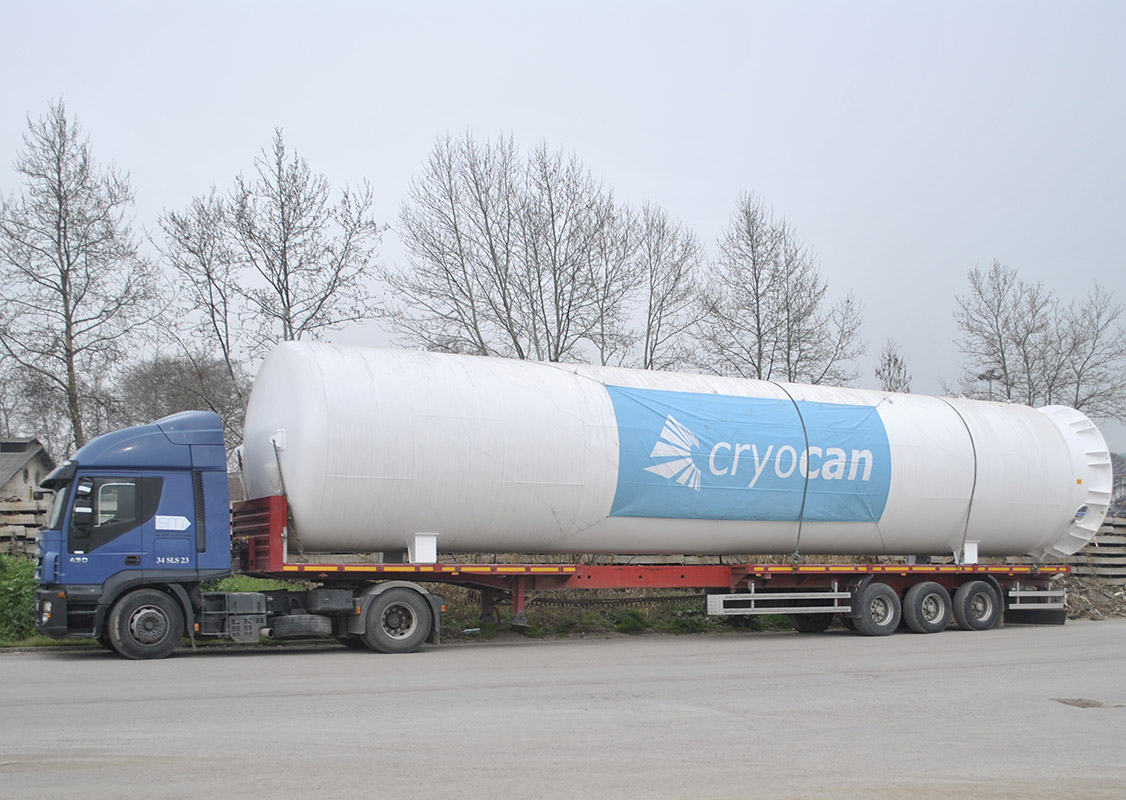

  • Foot design that facilitates transportation
  • Valve group design with outlet in lower camber
  • Design that increases the usage volume
  • High quality paint application with oven curing
  • Non-destructive testing tests in accordance with standards (Radiographic test, Penetrant test, Magnetic Particle Test, etc.)

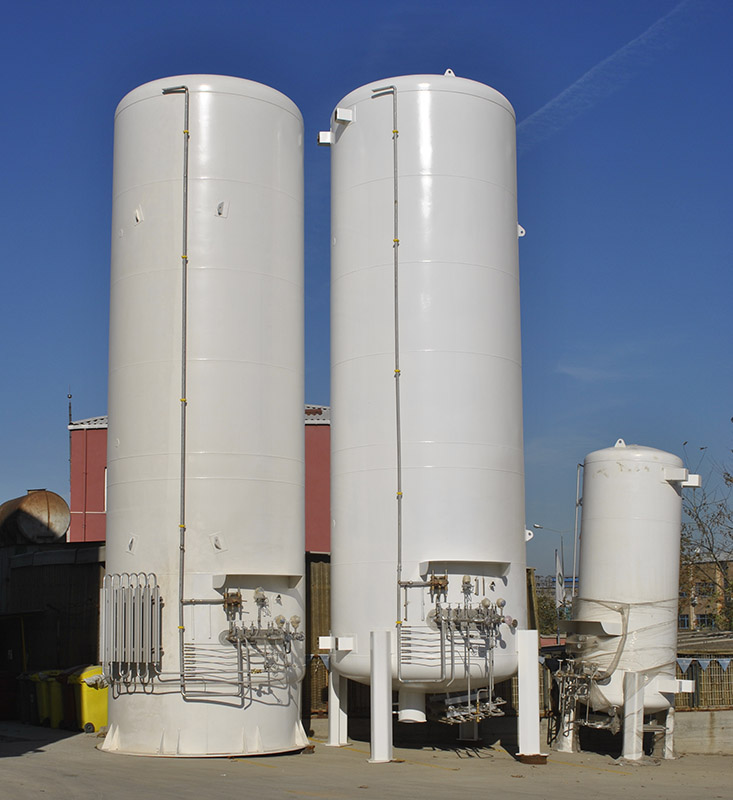

LNG STORAGE TANKS

CAPACITY LENGTH WIDTH HEIGHT
3 m³ 3423mm 2114mm
 2159mm
6 m³ 5155mm 2370mm
 2540mm
10 m³ 6420mm 2540mm
 2500mm
16 m³ 7150mm 3410mm
 3310mm
22 m³ 8350mm 3410mm
 3310mm
32 m³ 9580mm 3050mm
 3000mm
53 m³ 14500mm 3050mm
 3000mm
63 m³ 16550mm 3050mm
 3000mm

DESIGN CONDITIONS

Design Code: EN 13458-ANNEX C, ASME (U STAMP) and GOST.
Operating pressure: 5 - 10 bar (MAWP)
Design Temperature: +50 °C / -196 °C
Oetam Temperature: -50 °C / +50 °C
Material - Inner Tank: Stainless Steel (according to standard)
Material - Outer Tank: Carbon, Stainless Steel or Aluminum (according to standard)
Radiographic Control: In accordance with the design standard
Liquid Penetration Test: In accordance with the design standard
